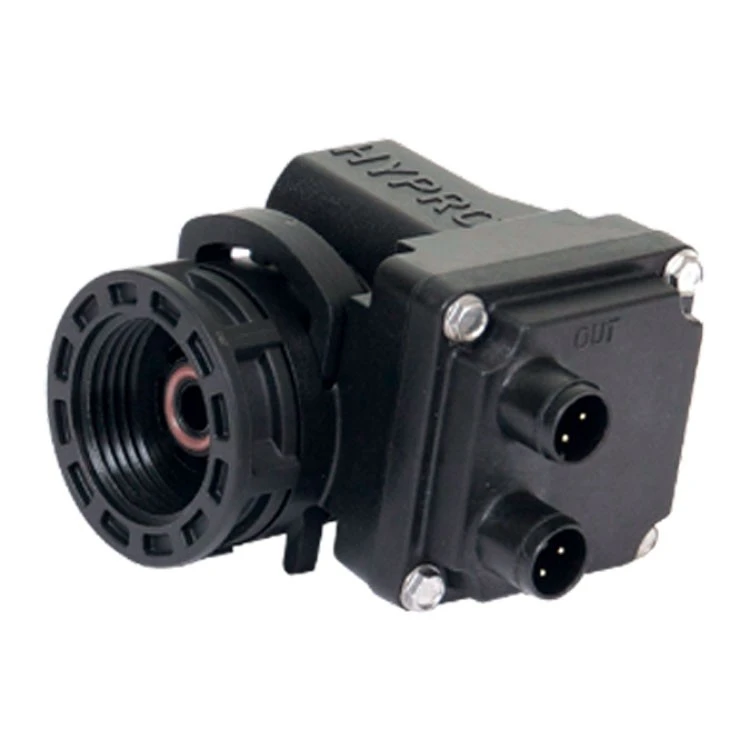

Hypro Prostop E Valve 3305-0011

HYPRO PROSTOP-E VALVE 12V 3305-0011

Pentair’s Hypro® ProStop-E™ provides instantaneous on/off control with 12 volt actuation, eliminating misapplications and waste. The valve utilizes a robust, quarter-turn electric ball valve that is highly reliable as compared to solenoid and plunger valves. The ProStop-E valve continuously utilizes an extremely low amount of power and provides a high flow capacity in a compact valve design.

SPECIFICATIONS RESOURCES

Environmental extreme (non-functioning): -40°C to 82°C (-40°F to 180°F)
Environmental functional operational: 1.6°C to 48°C (35°F to 120°F)
Ingress protection rating: IP67
Max opening pressure: 10 Bar (150 PSI)
Burst pressure: 20 Bar (290 PSI)
Reaction Time (Close to open): 180 milliseconds @ 250mA; Continuous (running state) 30mA
Voltage range: 9 to 16 VDC
Flow Charachteristics when installed on ProFlo Nozzle Body: 7.57 LPM @ 0.34 Bar (2.0 GPM @5 PSI Pressure Drop)
Dimensions: 59.8mm x 46.4mm x 68.4mm (2.35in x 1.83in x 2.69in)
Valve mounting: Fits all HYPRO Nozzle Bodies (ISO 228-G 3/4 threads)
Materials: FKM, Nylon, Viton, Stainless Steel
Electrical connection: M12

• • Weight

    0.2 kgs

  • SKU

    3305-0011
