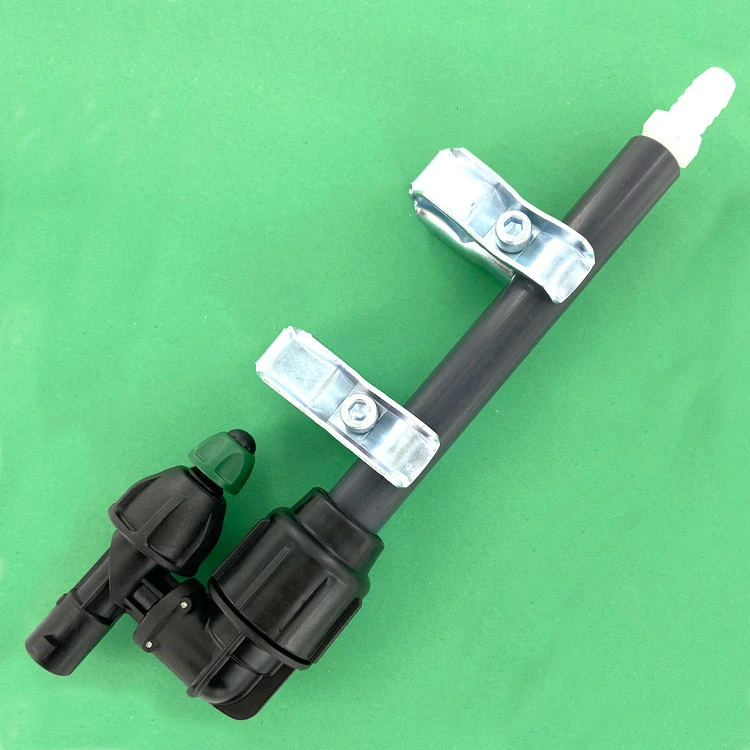

Hypro Nozzles XT Fascap Adjustable Spraytip Holder 15Q3570A Boom End Assembly

Hypro XT Fascap Adjustable Nozzle Holder comes with pipe and boom mounting clamps

For use with Hypro XT Fascap Range of nozzles and also the Arag Boom Extender Range of nozzles.

This can also be used with any EF3, Teejet or Euro style nozzle cap fitting but has been designed to carry the Hypro Fascap XT Nozzles, Arag BX Nozzles, and any Off Centre nozzles

Nozzle Holder comes with 25cm of 1/2 ” NB Pipe, with 1/2″ hose tail

Comes with pipe clamps to fit either 20mm or 30mm square steel boom section

Multiple adjustable swivel nozzle holder with anti drip valve, that can be use to turn the nozzle body off, as required

Rapid fitting onto pipe – compression fitting, simply pushes onto 1/2″ nominal bore (22.7mm external diameter) spray line, twist and tighten


Fitted with Viton Diaphragm

• • Weight

    0.5 kgs

  • SKU

    15Q3570ABOOMENDASSY

• Manufacturer

  Pentair Hypro

• Brand

  Hypro

• Clamp Size

  20mm Square Clamps, 30mm Square Clamps
