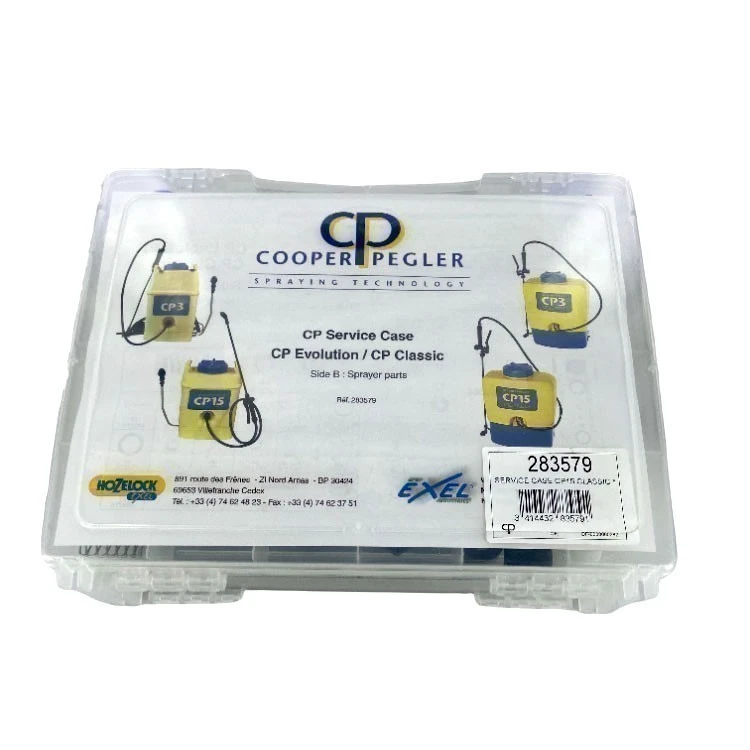

Cooper Pegler Classic & Evolution Sprayer Spare Parts Service Case 283579

Cooper Pegler Classic & Evolution Sprayer Spare Parts Service Case 283579

A spare parts service box containing spare parts for Cooper Pegler Classic & Evolution Sprayer

Each kit contains the following items:

1 – 3 x 334731 Trigger filter	21 – 3 x 283963 Pressure relief spring
2 – 5 x 322240 45° Lance end	22 – 5 x 242387 Pressure relief assy washer
3 – 10 x 334730 Trigger insert plug	23 – 1 x 283588 Brass Hose assembly connector
4 – 5 x 220874 Trigger spring	24 – 5 x 334728 Harness pin
5 – 1 x 283589 Trigger piston	25 – 2 x 322273 Hose assembly cap
6 – 10 x 285122 Trigger handle clip	26 – 6 x 334716 Nylon poppit valve
7 – 5 x 322279 Trigger retaining cap	27 – 5 x 440719 Diaphragm holder screw
8 – 5 x 322343 Nozzle cap	28 – 5 x 483357 Diaphragm clamp ring screw
9 – 10 x 334727 Lance tube olive	29 – 1 x 483612 Pressure relief valve body
10 – 30 x 464184 Nozzle backing washer	30 – 5 x 464184 Nozzle backing washer
11 – 10 x 334725 Trigger handle pin	31 – 5 x 270581 Pump handle ‘R’ clip
12 – 5 x 284582 Hose clip	32 – 5 x 471141 Pump handle washer
13 – 20 x 371694 Hollow cone nozzle	33 – 5 x 712220 Tank connector sealing washer
14 – 10 x 372020 Yellow reflex nozzle	34 – 1 x 334715 Relief valve cap
15 – 10 x 372021 Green reflex nozzle	35 – 2 x 334719 Pump lever bearing
16 – 10 x 372022 Blue reflex nozzle	36 – 5 x 242371 Cylinder liner ‘O’ ring
17 – 10 x 372023 Red reflex nozzle	37 – 1 x 334715 Relief valve cap
18 – 5 x 334714 Hose tail
19 – 3 x 334713 Hose grommet
20 – 2 x 322275 Pressure relief assembly nut

• • Weight

    1.5 kgs

  • SKU

    283579
