Berthoud Fluid Control Valve Kit 200806

Berthoud Anti Drip Pressure Control Valve Assembly

These valves will fit all Berthoud Sprayers that have either a fixed or telescopic lance assembly

This version will fit any Berthoud sprayers but includes the correct 45 degree elbow to allow fitting to lances that have the Berthoud Intergal Nozzle Cap Nut style fitted.

The valve works by staying closed and will not open until sufficient pressure (as listed below) has been reached to allow the valve to open. The valve will also shut off if the operating pressure drops below the pre-set pressures as below.

We have two versions of the valve available:

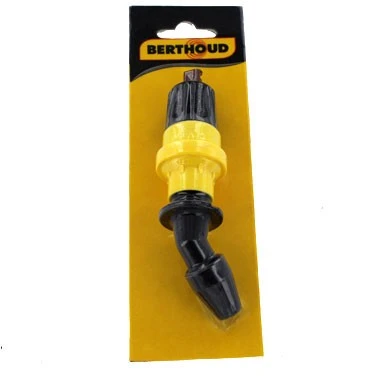

Yellow Valve 1 Bar Operation

Red Valve 1.5 Bar Operation

The yellow valve is supplied as standard with all Berthoud 2000 Pro Weed Control Sprayers

The Valves are preset and cannot be adjusted

This valve fits at the end of the lance, with the nozzle and nozzle cap attached to it.

The items included are as follows

1 X 45 Degree elbow to fit all berthoud lances
1 x Fluid Control Valve
2 x Sealing washers
1 x 18mm nozzle cap

• • Weight

    0.15 kgs

  • SKU

    200806

• Manufacturer

  Berthoud

• Brand

  Berthoud

• Valve size option

  Yellow 1 Bar (15 Psi ) Valve, Red 1.5 Bar (21 Psi ) Valve, Blue 2 Bar (30 Psi ) Valve, Green 3 Bar (45 Psi ) Valve
