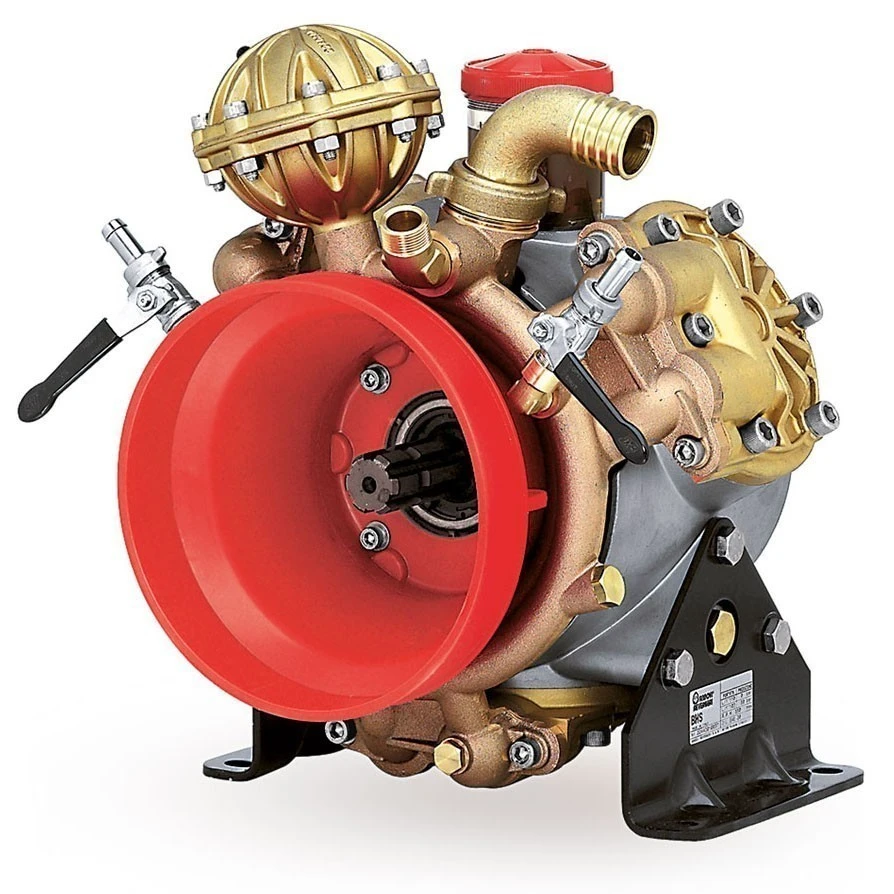

Annovi Reverberi BHS 150 AP C/C Diaphragm Pump 763

Annovi Reverberi BHS 150 AP C/C Diaphragm Pump 763

• Semi-hydraulic three-diaphragm pump, for use on sprayers for high pressure pesticide spraying in orchards and vineyards.
• Suction and delivery manifold separate from pump. Parts in contact with pumped liquids in brass/bronze and AISI 303/304. Diaphragms in NBR. Seals in NBR.
• Die-cast casing with oil-immersed mechanism and clear plastic tank for visual level checking. Fitted with air-hydraulic damper for smoother operation and less hammer effect in the delivery circuit.
• Remote level monitoring sensor on request. Remote oil tank installation kit available on request.
• Oil drainage stopper.
• Pistons with ring for a more efficient “oil cushion” system to protect the diaphragm.
• New-design diaphragm cut-out system to prevent contact tearing even in heavy-duty operating conditions.
• Spherical sector profile valves for lower flow resistance and improved volumetric efficiency. Metal fasteners with galvanised finish.

Technical Specification:

• AR Code 763
• Version AP C/C
• Diaphragms 3
• Max flow (lpm) 142.6
• Max flow (gpm) 37.7
• Max Pressure (bar) 50
• Max Pressure (psi) 725
• Power (Hp)16.3
• RPM550
• Net weight (Kg) 52
• Size (mm) – L397
• Size (mm) – H417
• Size (mm) – W490
• Suction (mm)ø 40
• Outlet (mm)ø 34
• Max temperature (°C) 60

• • Weight

    20 kgs

  • SKU

    763

• Brand

  Annovi Reverberi
