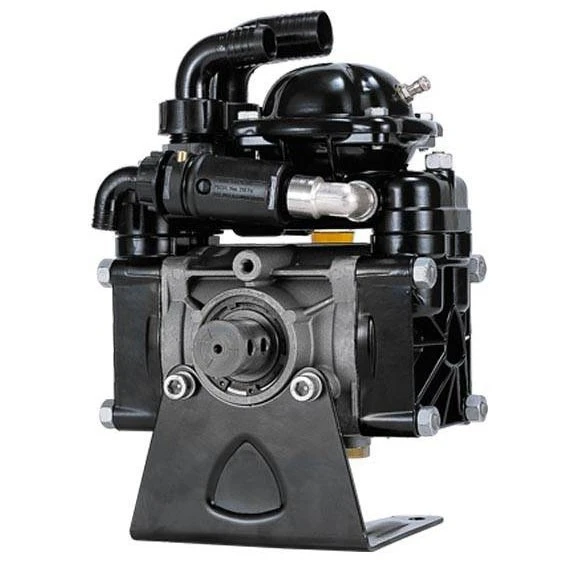

Annovi Reverberi AR 70 BP/SP Diaphragm Piston Pump 1201

Annovi Reverberi AR 70 BP/SP Diaphragm Piston Pump 1201

• Semi-hydraulic two-diaphragm pump, for use in low pressure systems. Parts in contact with pumped liquids in plastic-coated aluminium Rilsan and AISI 303/304. Diaphragms in NBR. Seals in NBR. Die-cast casing with oil-immersed mechanism and clear plastic tank for visual level checking. Remote oil tank installation kit available on request.
• Fitted with air-hydraulic damper for smoother operation and less hammer effect in the delivery circuit. Oil drainage stopper. Pistons with ring for a more efficient “oil cushion” system to protect the diaphragm.
• Spherical sector profile valves for lower flow resistance and improved volumetric efficiency. Rugged feet secured to pump casing. Mass-produced safety valve and cardan protection. Geomet metal fasteners.
• Available pulley fixtures or flanges for hydraulic motors.

Technical Specification:

AR Code 1201

Version SP

Diaphragms 2

Max flow (lpm) 74.1

Max flow (gpm)19.6

Max Pressure (bar) 20

Max Pressure (psi) 290

Power (Hp) 3.4

RPM 550

Net weight (Kg) 11.8

Size (mm) – L232

Size (mm) – H335

Size (mm) – W245

Suction (mm)ø 30

Outlet (mm)ø 25

Max temperature (°C) 60

• • Weight

    11.8 kgs

  • SKU

    1201

• Brand

  Annovi Reverberi
