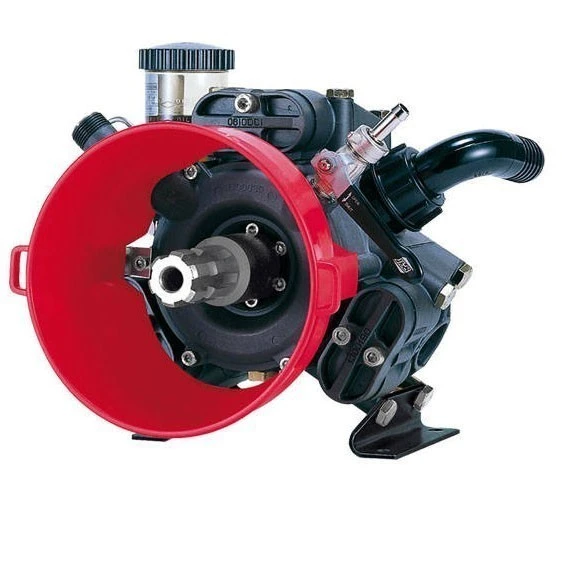

Annovi Reverberi AR 503 AP / CSP Diaphragm Pump 509

Annovi Reverberi AR 503 AP / CSP Diaphragm Pump 509

• Semi-hydraulic three-diaphragm pump, for use in the semi-professional agricultural sectors. Trolley-mounted in combination with electric motors or internal combustion engines for gardening, and small sprayers for medium-pressure pesticide treatments in gardens, greenhouses, orchards or vineyards.
• Parts in contact with pumped liquids in anodized aluminium, and AISI 303/304. Diaphragms in NBR. Seals in NBR. Die-cast casing with oil-immersed mechanism and clear plastic tank for visual level checking.
• Remote level monitoring sensor on request. Remote oil tank installation kit available on request. Oil drainage stopper. Pistons with ring for a more efficient “oil cushion” system to protect the diaphragm.
• New-design diaphragm cut-out system to prevent contact tearing even in heavy-duty operating conditions.
• Spherical sector profile valves for lower flow resistance and improved volumetric efficiency.
• Mass-produced safety valve and cardan protection. Metal fasteners with galvanised finish.
• Available with reduction gearboxes for electric motors or internal combustion engines and flanges for hydraulic motors, hydraulic pumps, overgears or small cultivating machines.

Technical Specification:

• AR Code 509
• Version C/SP
• Diaphragms 3
• Max flow (lpm) 54.1
• Max flow (gpm) 14.3
• Max Pressure (bar) 40
• Max Pressure (psi) 580
• Power (Hp) 5.6
• RPM 550
• Net weight (Kg) 11.5
• Size (mm) – L275
• Size (mm) – H274
• Size (mm) – W294
• Suction (mm)ø 30
• Outlet (mm)ø 34
• Max temperature (°C) 60

• • Weight

    11.5 kgs

  • SKU

    509

• Brand

  Annovi Reverberi
