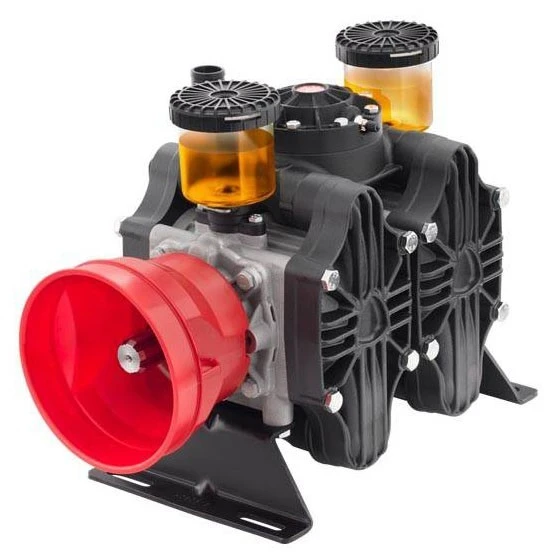

Annovi Reverberi AR 300 MLC C/C Diaphragm Pump 31998

Annovi Reverberi AR 300 MLC C/C Diaphragm Pump 31998

• Modular pump for weedkilling and liquid fertiliser application. Pump heads and manifolds made of anodized aluminium, diaphragms and air chamber diaphragm in Blueflex™ material, valves with polymer cages, and wetted parts in contact with spray solution made in AISI 316 steel.
• Internal mechanical components immerged in oil bath. Semi hydraulic diaphragm design.
• Options: remote mounted oil reservoir. Special shaft and cover designed for R.P.M sensor.
• Shaft versions: C/C through shaft 1 3/8” six spline and C/F cardan female for hydraulic motor 32 mm male cylindrical shaft.

Technical Specification:

• AR Code 31998
• Version C/C
• Diaphragms 4
• Max flow (lpm) 300
• Max flow (gpm) 79
• Max Pressure (bar) 15
• Max Pressure (psi) 218
• Power (Hp)-
• RPM550
• Net weight (Kg) 43,7
• Size (mm) – L606
• Size (mm) – H399
• Size (mm) – W-
• Suction (mm) 60
• Outlet (mm) 35
• Max temperature (°C) 60

• • SKU

    31998

• Brand

  Annovi Reverberi
