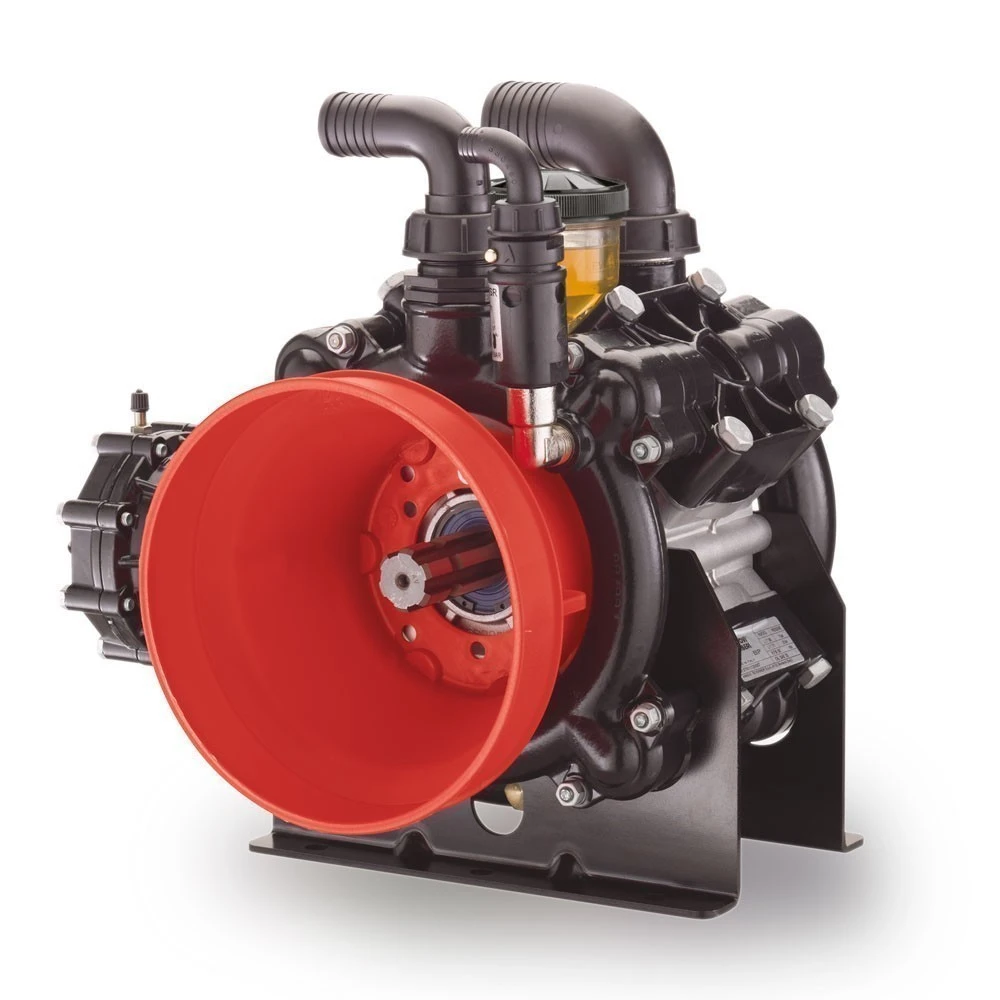

Annovi Reverberi AR 160 BP C/C Diaphragm Piston Pump 1209

Annovi Reverberi AR 160 BP C/C Diaphragm Piston Pump 1209

• Semi-hydraulic four-diaphragm pump, for use in low pressure systems. Parts in contact with pumped liquids in plastic-coated aluminium Rilsan and AISI 303/304. Diaphragms in NBR. Seals in NBR. Die-cast casing with oil-immersed mechanism and clear plastic tank for visual level checking.
• Fitted with air-hydraulic damper for smoother operation and less hammer effect in the delivery circuit. Remote level monitoring sensor on request.
• Remote oil tank installation kit available on request. Oil drainage stopper. Pistons with ring for a more efficient “oil cushion” system to protect the diaphragm. Spherical sector profile valves for lower flow resistance and improved volumetric efficiency.
• Rugged feet secured to pump casing. Mass-produced safety valve and cardan protection. Geomet metal fasteners. Available pulley fixtures, flanges for hydraulic motors.
• Kit for combining two pumps to form a modular unit to supply the sprayer’s various uses.

Technical Specification:

• AR Code 1209
• Version C/C
• Diaphragms 4
• Max flow (lpm) 166.2
• Max flow (gpm) 43.9
• Max Pressure (bar) 20
• Max Pressure (psi) 290
• Power (Hp) 8.4
• RPM 550
• Net weight (Kg) 27.5
• Size (mm) – L381.5
• Size (mm) – H422
• Size (mm) – W463
• Suction (mm)ø 40
• Outlet (mm)ø 25
• Max temperature (°C) 60

• • Weight

    27.5 kgs

  • SKU

    1209

• Brand

  Annovi Reverberi
