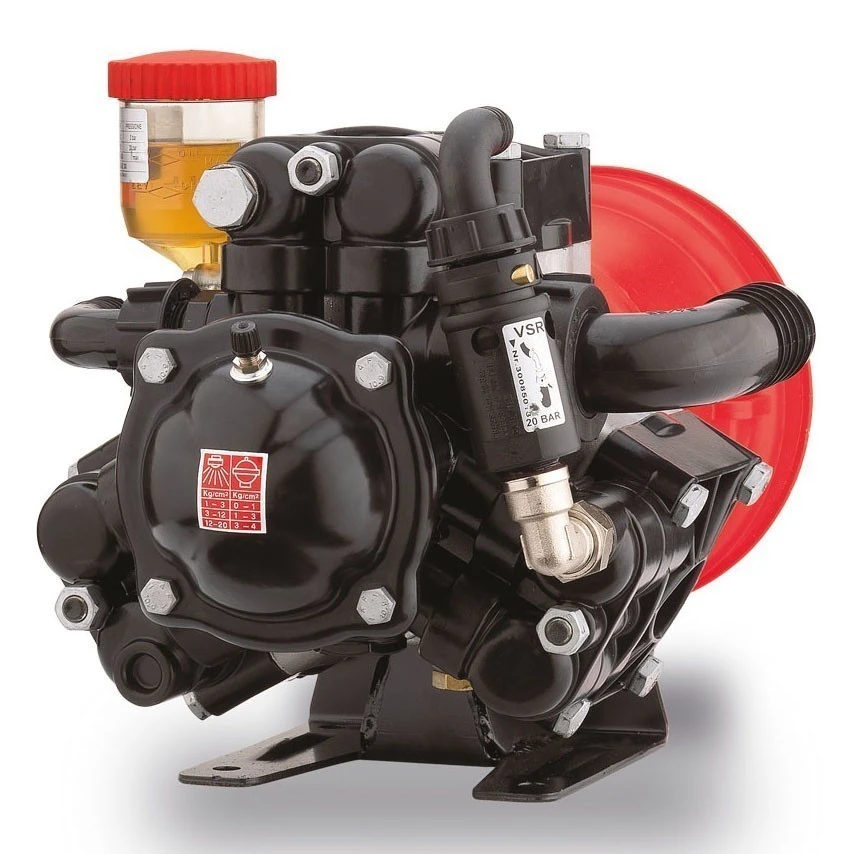

Annovi Reverberi AR 135 BP C Diaphragm Piston Pump 1206

Annovi Reverberi AR 135 BP C Diaphragm Piston Pump 1206

• Semi-hydraulic three-diaphragm pump, for use in low pressure systems. Parts in contact with pumped liquids in plastic-coated aluminium Rilsan and AISI 303/304. Diaphragms in NBR. Seals in NBR.
• Die-cast casing with oil-immersed mechanism and clear plastic tank for visual level checking. Fitted with air-hydraulic damper for smoother operation and less hammer effect in the delivery circuit.
• Remote level monitoring sensor on request. Remote oil tank installation kit available on request. Oil drainage stopper. Pistons with ring for a more efficient “oil cushion” system to protect the diaphragm.
• Spherical sector profile valves for lower flow resistance and improved volumetric efficiency.
• Rugged feet secured to pump casing. Mass-produced safety valve and cardan protection.
• Geomet metal fasteners.

Technical Specification:

• AR Code 1206
• Version C
• Diaphragms 3
• 6 Spline PTO shaft
• Max flow (lpm) 128
• Max flow (gpm) 33.8
• Max Pressure (bar) 20
• Max Pressure (psi) 290
• Power (Hp) 6.8
• RPM 550
• Net weight (Kg) 15.5
• Size (mm) – L306.5
• Size (mm) – H293
• Size (mm) – W410
• Suction (mm)ø 40
• Outlet (mm)ø 25
• Max temperature (°C) 60

• • Weight

    15.5 kgs

  • SKU

    1206

• Brand

  Annovi Reverberi
