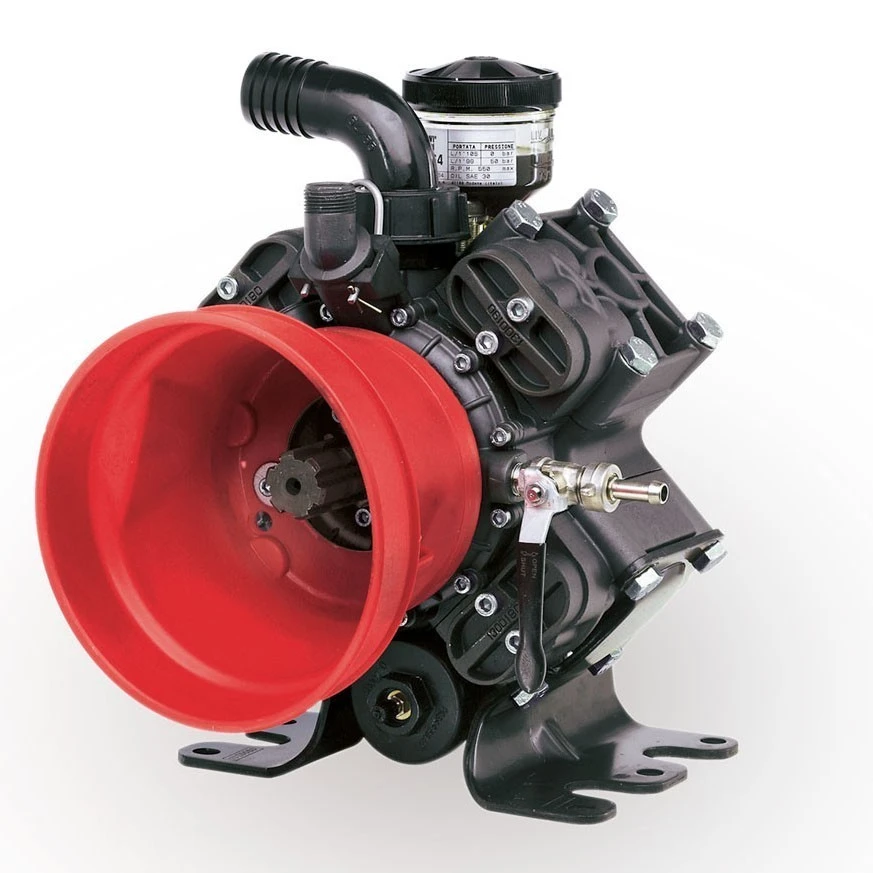

Annovi Reverberi AR 1064 AP C/C Diaphragm Pump 731

Annovi Reverberi AR 1064 AP C/C Diaphragm Pump 731

• Semi-hydraulic four-diaphragm pump, for use on sprayers for high pressure pesticide spraying in orchards and vineyards. Parts in contact with pumped liquids in anodized aluminium, and AISI 303/304.
• Diaphragms in NBR. Seals in NBR. Die-cast casing with oil-immersed mechanism and clear plastic tank for visual level checking.
• Fitted with air-hydraulic damper for smoother operation and less hammer effect in the delivery circuit.
• Remote level monitoring sensor on request. Remote oil tank installation kit available on request.
• Oil drainage stopper. Pistons with ring for a more efficient “oil cushion” system to protect the diaphragm.
• New-design diaphragm cut-out system to prevent contact tearing even in heavy-duty operating conditions.
• Spherical sector profile valves for lower flow resistance and improved volumetric efficiency.
• Mass-produced safety valve and cardan protection. Metal fasteners with galvanised finish.

Technical Specification:

• AR Code 731
  Version AP C/C
  Diaphragms 4
  Max flow (lpm) 108.5
  Max flow (gpm) 28.7
  Max Pressure (bar) 50
  Max Pressure (psi) 725
  Power (Hp) 13.1
  RPM550
  Net weight (Kg) 23.5
  Size (mm) – L421
  Size (mm) – H380
  Size (mm) – W472
  Suction (mm)ø 40
  Outlet (mm)ø 34
  Max temperature (°C) 60

• • Weight

    20 kgs

  • SKU

    731

• Brand

  Annovi Reverberi
